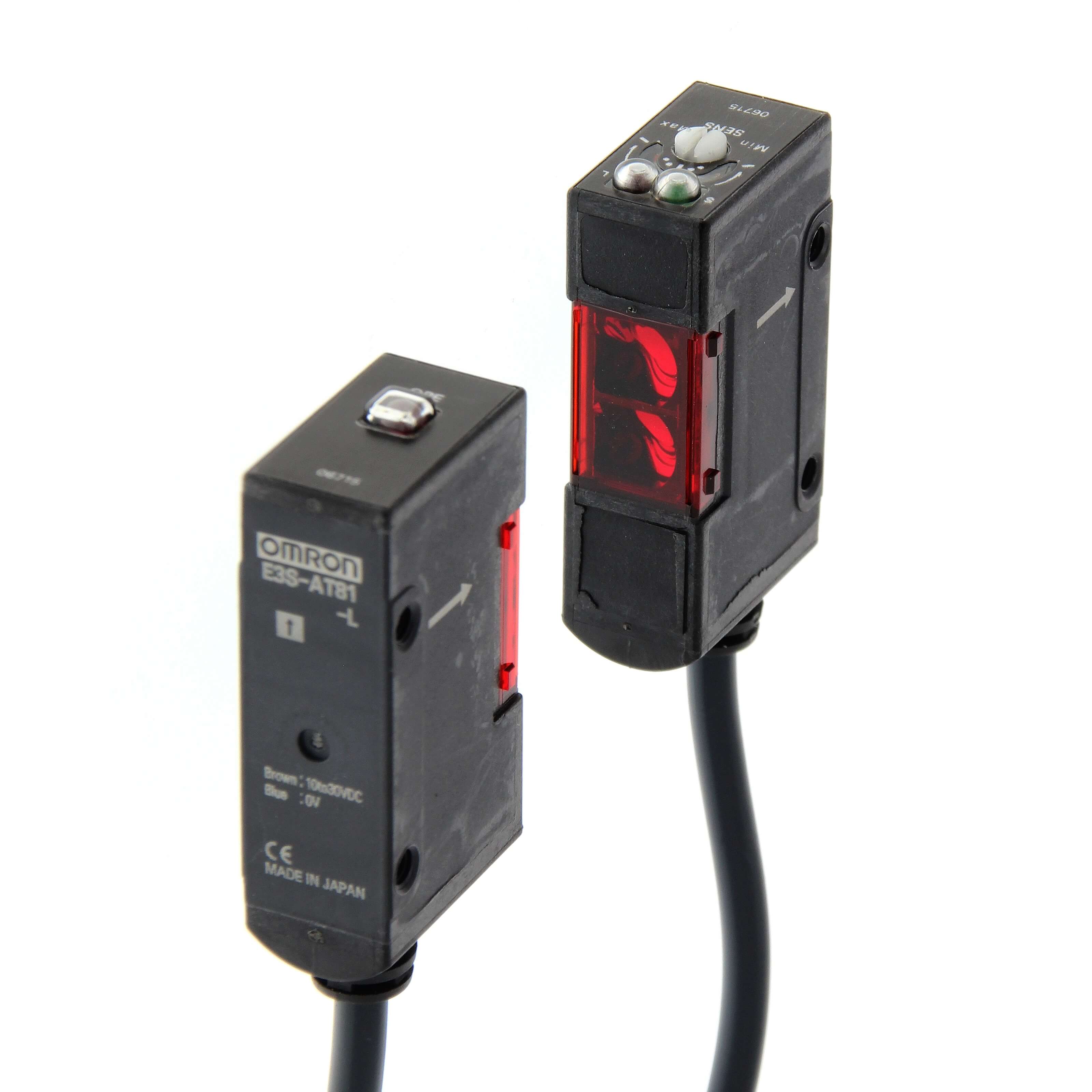

E3S-AT61 2M VALOKENNO
Valmistajan tuote ID 154285
Valmistajan tuotekuvaus Photoelectric sensor, through-beam, 7 m, DC, 3-wire, NPN, vertical, 2 m cable
Valmistajan tyyppikuvaus
Avainsanat

Tekniset tiedot

Laser protection class None
AWG-number 24
Degree of protection (IP) IP67
Height of sensor 40 mm
Ambient temperature -25 °C
Construction type housing Cuboid
Max. switching distance 7000 mm
Max. opening angle 4 °
Number of semiconductor outputs with signalling function 1
Type of electric connection Cable
Type of interface for safety communication Other
Max. output current 100 mA
Type of switching output NPN
Rated control supply voltage DC 10 V
Type of switch function Normally open contact (NO)
Type of light Polarity free red light
Explosion safety category for dust None
Housing material Plastic
Sensing mode Light-/dark switching
Explosion safety category for gas None
Scope of delivery of the one-way system Transmitter and receiver
Degree of protection (NEMA) Other
Operation agent-safety class Safety class 0
Rated switching distance 7000 mm
Length of sensor 21 mm
Voltage type DC
Switching frequency 1000 Hz
Width sensor 12.4 mm
Material of cable sheath Polyvinyl chloride (PVC)
Material of optical surface Plastic
Setting procedure Manual adjustment
Wavelength of the sensor 700 nm
Response time 0.5 ms
